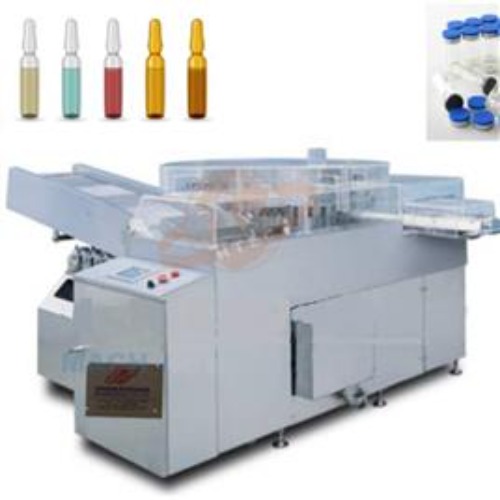

Vial Washing Machine

Name: Vial Washing Machine
Brand: AAKASH PHARMA TECH
Price: 1000000.0 INR
Availability: InStock

Price 1000000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Vial Washing Machine Specification

Efficiency (%)
98%

Temperature Range
Ambient to 80C

Model No
VWM-180

Automation Grade
Automatic

Driven Type
Motor driven

Frequency
50 Hz

Motor Power
2 HP

Usage & Applications
Pharmaceutical vial washing

Speed
Variable, up to 180 vials/min

Installation Guideline
Floor mounted, require water & drain point

Production Capacity
5000-10000 vials/hour

Accessories
Change parts for vial size, user manual

Type
Automatic Vial Washing Machine

Material
Stainless Steel (SS 304/316)

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Based Control Panel

Drive Type
Electric

Voltage
220-240 V AC

Power
2.5 kW

Weight (kg)
Approx. 450 kg

Dimension (L*W*H)
2000 x 1200 x 1700 mm

Color
Silver

Capacity
Max. 180 vials/min

Features
High efficiency, Easy operation, GMP compliant, Low maintenance

Power Consumption
2.5 kW/hr

Surface Finish
Matt / Mirror Finish

Machine Type
Linear type Bottle Washing Machine

Serviceability
Tool-free access for maintenance

Material of Contacts Parts
Stainless Steel 316

Inlet/Outlet Conveyor Height
85050 mm

Water Consumption
150-200 L/hr

Vial Diameter Range
16 mm to 55 mm

Operational Mode
Continuous

Safety Features
Overload protection, Emergency stop switch

Washing Zones
6 zones (2 with detergent/chemical, 4 with purified water)

No. of Needle Jets
24

Noise Level
< 65 dB

About Vial Washing Machine

Complete Liquid Processing & Liquid Packaging Solutions to Segments Like Beverages, Chemicals, Cosmetics, Dairy, Detergents, Distilleries, Edible Oil, Fertilizers, Food, Nutraceuticals, Paints, Pharmaceutical, Lubricants Oil, Pesticides, Pigments, Plastics, and Other Liquid-based Manufacturing Washing Machines, Filling Machines, Plugging, Sealing and Capping Machines, Labeling Machines and Special Purpose Machines Like Automatic Shrink Sleeve Applicator, Trio-block 3 in 1 (Rinsing, Filling and Capping), Automatic Mosquito Replant Packing Systems, Flavored Milk/Plain Milk Packaging System and Pre-Filled Syringe Filling and Stoppering Machine. HMPL Spectrum of Processing Solution Includes Various Liquid Oral/syrup Manufacturing Plant, Ointment/Lotion/Cream/Toothpaste Manufacturing Plant, Various Application Mixer Machine Like Juice, Paint, Gel, Milk, Curd, Etc. Injectable Liquid Filling Machine, Liquid Filling Machine, Injectable Dry Powder Filling Machine, Dry Powder Filling Machine, Rubber Stoppering Machine, vial filling machine, injectable liquid filling machine, Injectable Liquid Filling Machine, Injectable Vial Filling line, Packaged Drinking Water Filling Machine, Mineral Water Filling Machine, automatic water filling machine, pet bottle filling machine price, water filling machine for sale, water filling machine price in india, water filling machine near me, small water filling machine price, semi-automatic water filling machine price in India, Small Water Filling Machine Price, Water Filling Machine price in India, Automatic water filling Machine, Semi-Automatic Water Filling Machine price in India, 4 nozzle juice packing machine, manual juice filling machine, small juice filling machine.

Unmatched Cleaning Efficiency

Equipped with 24 needle jets and six advanced washing zones, the VWM-180 ensures each vial is meticulously cleaned-meeting stringent pharmaceutical standards. Its robust design accommodates a broad vial diameter range and provides up to 98% cleaning efficiency, guaranteeing minimal contamination risks.

Seamless Operation and Control

The system's fully automatic mode, motor-driven conveyor, and PLC-based control panel allow operators to manage washing cycles with ease. Features such as tool-free maintenance, adjustable speed (up to 180 vials/min), and computerized controls make operation straightforward and efficient for any user.

Built to Meet the Highest Standards

Featuring stainless steel contact parts, a matt or mirror finish, GMP compliance, and critical safety features, the VWM-180 delivers durability and reliability. The floor-mounted design, low noise level, and easy installation further help meet modern pharmaceutical processing requirements.

FAQ's of Vial Washing Machine:

Q: How does the VWM-180 ensure effective vial cleaning?

A: The VWM-180 employs a six-zone washing system with two zones for detergent or chemical cleaning and four for purified water rinsing. High-pressure needle jets and a continuous linear conveyor ensure each vial is thoroughly washed to meet stringent pharmaceutical standards.

Q: What vial sizes can the Vial Washing Machine accommodate?

A: This machine handles vial diameters ranging from 16 mm to 55 mm. Change parts are available to adapt the washing process for different vial sizes within this range, making it versatile for various production needs.

Q: When should maintenance be performed on the machine?

A: Routine maintenance should follow the manufacturer's guidelines, usually after each production cycle and during scheduled service intervals. Tool-free access to key components allows for quick and efficient maintenance tasks.

Q: Where should the machine be installed for optimal performance?

A: Install the VWM-180 on a level floor with both a water supply and drain point available. Proper installation ensures optimal performance, easy maintenance, and compliance with GMP standards.

Q: What is the process for changing vial sizes on this machine?

A: The VWM-180 supports tool-free changeovers. To switch vial sizes, operators fit the appropriate change parts provided, minimizing downtime and ensuring the machine quickly adapts to new vial dimensions.

Q: How does the control and automation system benefit users?

A: The PLC-based control panel and computerized settings enable easy monitoring and operation, ensuring precise, repeatable washing cycles. Automatic functions reduce manual intervention and maximize productivity.

Q: What safety features does the VWM-180 offer?

A: Key safety features include overload protection to safeguard the motor and an emergency stop switch for quick shutdown in case of emergency, thus ensuring a safe operating environment.
